A road bike is built from countless specs. We explored different suppliers in the early stages of the project and found the best. From the industry leading steel tubes, groupsets to components.
Fitted with components from Campagnolo, Deda, Selle Italia, Goodyear and Cyclovation, this is the ultimate road bike for anyone with an appetite for high quality and reliability.
RIDE IN PEACE
Our 12 year warranty covers any damage owing to craftsmanship and production process. We also carry original spare parts in case you need them. Our bikes are made of Columbus steel alloys and they keep their strength for life.
OMNICROM the latest low-carbon Chromium-Molybdenum Steel alloys used today in the aerospace industry, is much lighter than average steel while still maintaining higher strength.
OBJECT is made for roads with a geometry between agility and comfort. The average stack and reach of the bike offers a more balanced set-up reducing muscle fatigue and improving power efficiency for those long endurance rides.
Visit us at Utandi, ECR, Chennai. Here you will find our bikes on display. We also have a range of apparels and most of the accessories you might need for your next ride!
A BIKE WELL MADE
A OBJECT road bike is pure craftsmanship. Every frame is welded or brazed in our partner factory in Coimbatore by highly specialised welders with years of experience, working on thin-walled tubes from Columbus Italy.
We only sell direct to you. That means you are in contact with the brand and maker directly. We deliver bikes completely assembled and tested. Certain components are removed while shipping, which you can re-fix with tools in the box.
Steel in performance category cycling in India is rare. Frame in Columbus steel with Campagnolo + our select brands of components make this bicycle a rarest one in Indian roads. We exist for this dedicated uncommons.

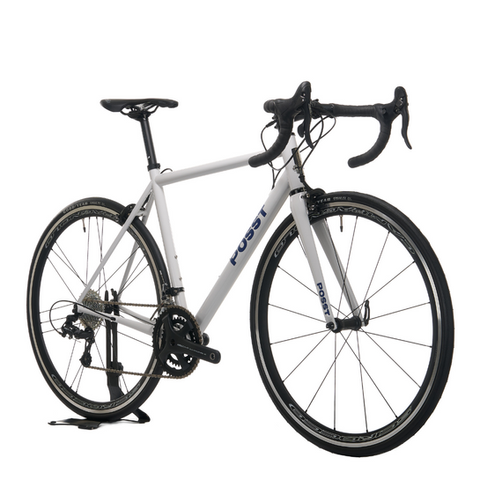

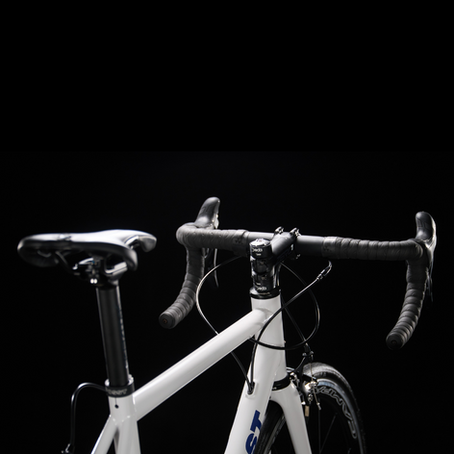

Object frame set uses a custom blend of modern, high performance Columbus steel tubing and is designed for distance and comfort, combined with a lively and spirited ride. A lot of thought process and research is behind the development of this frame. A category first and a truly Made in India product. Coupled with the practical advantages of rim-brakes, this is one incredible road bike frame. Following slides will tell you more.
TECH SPECS & EQUIPMENT OBJECT 2022

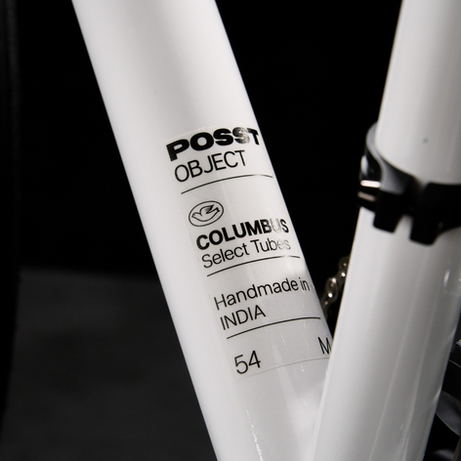

Frame - Columbus Select Steel Tubes
Fork - Custom Full Carbon 1.1/8 - 1.1/2
Headset - Columbus 1-1/2" Semi-integrated

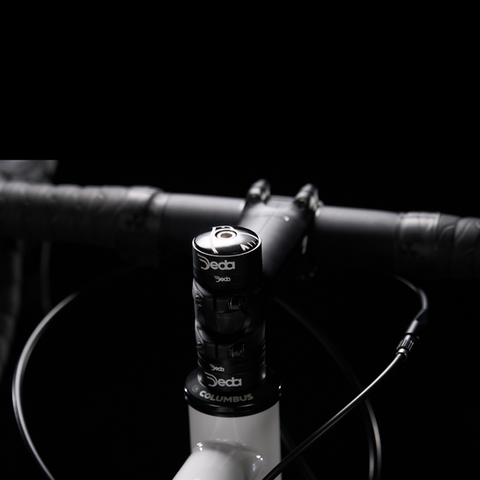

Spacers - Deda Aluminium Anodized
Expander - Columbus 1-1/8" 40mm
Coating / Paint - Cromax by Axalta Coating Systems, formerly DuPont Performance Coatings

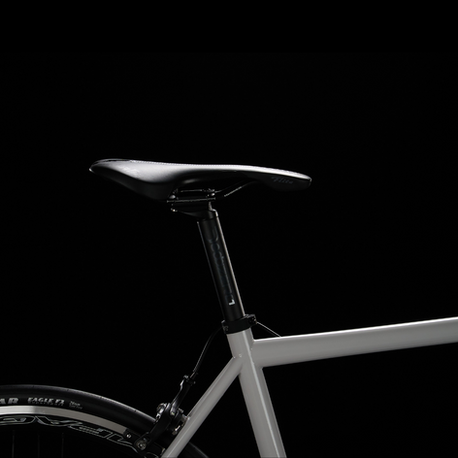

Saddle - Selle Italia Flite
Seat Post - Deda Zero1 Alloy 6061, Dia 27.2
Seat Clamp - Custom Cnc Machined 6061. Ti Bolt
Handlebar - Deda Zero1 6061 Reach 75. Drop 130
Stem - Deda Zero1 3D Forged, Alloy 6061
Bar Tapes - Cyclovation Premium Silicone Touch

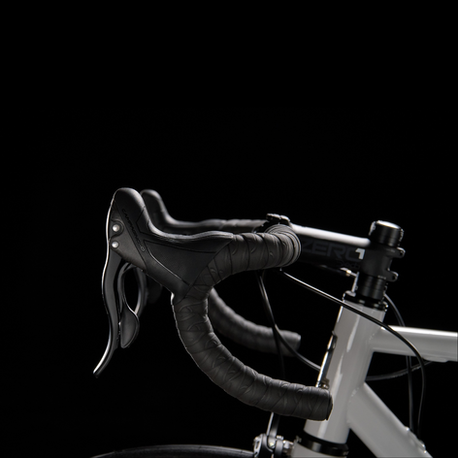

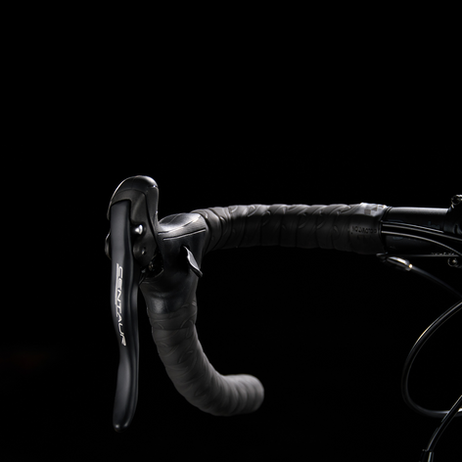

Controls - Campagnolo Centaur Ergopower
GPS & Lights - Discovery Pro + Raz Pro + Sensors
Cables - Campagnolo Complete Set. Internal
Bar End Plugs - Posst Custom Cnc Machined Alu 6061
Head Tube - Columbus Spirit HSS. Omnicrom
Top Tube - Columbus Max Double Butted Omnicrom
Down Tube - Columbus Spirit HSS Double Butted Omnicrom
Seat Tube - Columbus Zona Single Butted 25crmo4
Seat Stay - Columbus Zona 25crmo4 Seamless
Chain Stay - Columbus Zona S Bend, Butted , 25crmo4 Seamless
Derailleur Front - Campagnolo Centaur. Clamped.
Derailleur Rear - Campagnolo Centaur. Medium Cage
Crankset - Campagnolo Centaur 34-50 Ut
Bottom Bracket - Rideworks T47 X 68
Chains - Campagnolo 11s Chain Ultra-link
Sprockets - Campagnolo Centaur 12-32
Pedals - XLC PD-M02 Platform Aluminium
Chain Lubes - REX Ultra-low friction Wax Based
Wheelset - Campagnolo Scirocco C17 Cl. Campagnolo FW
Quick Release - Campagnolo Quick Release Set
Tires - Goodyear Eagle F1 Supersport 700x28c. Black.
Inner Tubes - Continental Race 28. Butyl, Presta 60
Brakes - Campagnolo Centaur Dual Pivot Rim
Bicycle Weight - 9.36 Kg. Fully built in 56 size.
Laden Weigh - 120 Kg. Incl rider and kits
GEOMETRY OBJECT 2020
Size 50 52 54 56 58
Stack 530 540 560 580 600
Reach 375 380 384 389 397
A. Seat Tube Length 450 480 520 540 560
B. Top Tube Length 512 525 541 561 575
C. Head Tube Length 115 124 144 162 181
D. Seat Tube Angle 75.5 75 74.3 73.5 73.5
E. Head Tube Angle 71 71.5 72.2 73 73.5
F. Stack 530 540 560 580 600
G. Reach 375 380 384 389 397
H. BB Drop 77 77 75 75 75
I. Chain Stay Length 415 415 415 415 415
J. Wheelbase 984 988 993 997 1015
K. Front Center 581 585 590 593 602
BB Height (28 c tyre) 266 266 268 268 268
O. Standover Height 712 735 769 787 807
N. Fork Length 367 367 367 367 367
Fork rake/offset 43 43 43 43 43
Trail (28c tire) 73 69 65 60 57
Crank 170 170 172.5 172.5 175
Stem Length / Angle 90 / 8 90 / 8 100 / 8 100 / 8 110 / 8
Handlebar Width 40 42 42 44 44
Seatpost Setback 20 20 20 20 20
FRAME SIZE 50
Top Tube Length 512
Seat Tube Length 450
This is not a new model. OBJECTSUB is the first among the smaller sizes of our OBJECT bikes. Short riders need a more compact position on the bike to use their hips and leg muscles more efficiently. The team at Scolarian Bikes developed this frame size to give a more stable and solid ride for endurance cyclist in the height 5’2” to 5’3”.
Test ride of size 50 available from 3rd Jan 2022.
Rider Height 158-166
For complete details download
